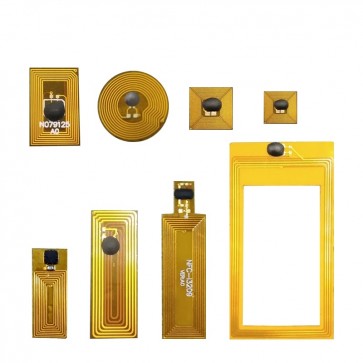

5MM Mini Bluetooth Pairing RFID NFC Tag Sticker FPC Tag 213 Programmable Anti-metal IC Card Access Control

5MM Mini Bluetooth Pairing RFID NFC Tag Sticker FPC Tag 213 NFC Tag Programmable Anti-metal IC Card Access Control

1. Product introduction

Radio Frequency Identification, RFID (Radio Frequency Identification) technology, also known as radio frequency identification, is a communication technology that can identify specific targets and read and write related data through radio signals without the need to establish mechanical or optical contact between the identification system and specific targets .

2. Performance parameters

1. Chip: NTAG213 (215/216/icode x/ Fudan F08 can be customized)

2. Working frequency: 13.56MHz

3. Maximum gain value: 1.5dbm

4. Size: 5x5mm (customizable)

5. Standard: 14443A, 144 BYTES memory

6. Number of reads and writes: >=100,000 times

7. Service life: >=10 years

8. Induction distance: about 8-20mm (depending on the card reader)

9. Power supply mode: non-contact data transmission and power supply

10. Operating temperature range: -20 to 85°C

3. Main features and applications

Bluetooth headset, Bluetooth speaker pairing, support IC card access control function
