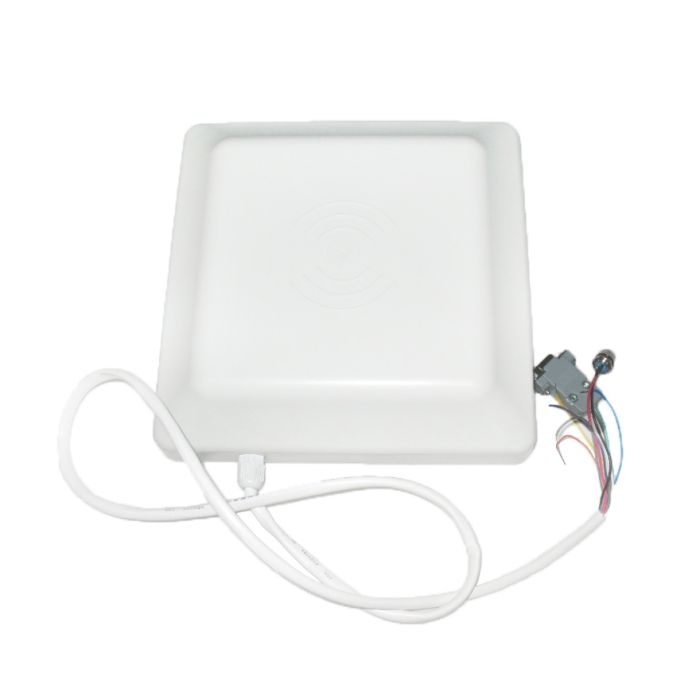

Yanzeo SR682 UHF RFID Reader 6m Long Range Outdoor IP67 8dbi Antenna RS232 RS485 Wiegand UHF Integrated Reader Network Port
$189.00
In stock
SKU
Yanzeo SR682
Yanzeo SR682 UHF RFID Reader 6m Long Range Outdoor IP67 8dbi Antenna RS232 RS485 Wiegand UHF Integrated Reader Network Port
Yanzeo SR682 UHF RFID Reader, 6m Long Range Outdoor IP67,8dbi Antenna RS232 RS485 Wiegand UHF Integrated Reader Network Port
Yanzeo SR681/SR682 is a High Performance UHF integrated reader for 6m long range operation. The reader operates in frequency range of 865MHz～928MHz design to read ISO18000‐6C and ISO18000‐6B protocol ID Tag.The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
| OPERATIONAL PARAMETER | |
|---|---|
| Air interface protocol | ISO18000-6B , ISO18000-6C（EPC GEN2） |
| Prompt | Beep or LED light flash |
| Read Range | >6m |
| Operating Frequency | International(920～925MHz) |
| USA(902～928MHz) | |
| EUR(865～868MHz) | |
| Others(Customized Tag) | |
| Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
| Antenna | 8dBi circular polarize antenna (Integrated) |
| Working mode | Master-Slave Mode(Online Mode) \ Time Scheduled Modes \ Trigger Mode |
| Communication interface | RS232 \ RS485 \ Wiegand26 \ Wiegand34 \ RJ45 \ WIFI \ GPRS |
| Group of reading | >50PCS |
| PHYSICAL CHARACTERISTICS | |
| Dimension H x W x L: | 227mm*227mm*60mm(Length x Width x Height) |
| Net weight | 750g |
| Weight | 1500g |
| Material | ABS + PC |
| POWER PARAMETER | |
| Working voltage | +12V |
| Output power | 0-30dBm (Adjustable) |
| Power Consumption | <3w |
| ENVIRONMENTAL PARAMETER | |
| Operating Temperature | -20℃ ~ +70℃(Customized) |
| Working Humidity | 20％ ~ 95％(without condensation) |
| Storage Temperature | -40℃ ~ +125℃ |
| ACCESSORIES | |
| Software Pack (Optional) | API Software Development Kits complete with VB,C#Sample Program |
