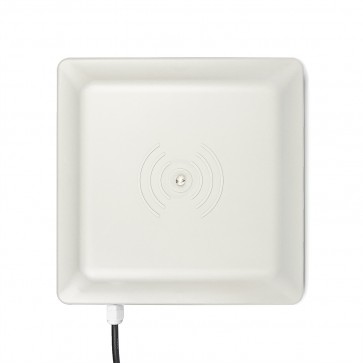

Yanzeo SR681 UHF RFID Reader Outdoor IP67 8dbi Antenna 6m Long Range RS232 RS485 Wiegand integrated Reader Network Port
$190.00
In stock
SKU
Yanzeo SR681
Yanzeo SR681 UHF RFID Reader Outdoor IP67 8dbi Antenna 6m Long Range RS232/RS485/Wiegand integrated Reader Network Port
Yanzeo SR681 UHF RFID Reader Outdoor IP67 8dbi Antenna 6m Long Range RS232/RS485/Wiegand integrated Reader Network Port
Yanzeo SR681/SR682 is a High Performance UHF integrated reader for 6m long range operation. The reader operates in frequency range of 865MHz～928MHz design to read ISO18000‐6C and ISO18000‐6B protocol ID Tag.The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
| OPERATIONAL PARAMETER | |
|---|---|
| Air interface protocol | ISO18000-6B , ISO18000-6C（EPC GEN2） |
| Prompt | Beep or LED light flash |
| Read Range | >6m |
| Operating Frequency | International(920～925MHz) |
| USA(902～928MHz) | |
| EUR(865～868MHz) | |
| Others(Customized Tag) | |
| Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
| Antenna | 8dBi circular polarize antenna (Integrated) |
| Working mode | Master-Slave Mode(Online Mode) \ Time Scheduled Modes \ Trigger Mode |
| Communication interface | RS232 \ RS485 \ Wiegand26 \ Wiegand34 \ RJ45 \ WIFI \ GPRS |
| Group of reading | >50PCS |
| PHYSICAL CHARACTERISTICS | |
| Dimension H x W x L: | 227mm*227mm*60mm(Length x Width x Height) |
| Net weight | 750g |
| Weight | 1500g |
| Material | ABS + PC |
| POWER PARAMETER | |
| Working voltage | +12V |
| Output power | 0-30dBm (Adjustable) |
| Power Consumption | <3w |
| ENVIRONMENTAL PARAMETER | |
| Operating Temperature | -20℃ ~ +70℃(Customized) |
| Working Humidity | 20％ ~ 95％(without condensation) |
| Storage Temperature | -40℃ ~ +125℃ |
| ACCESSORIES | |
| Software Pack (Optional) | API Software Development Kits complete with VB,C#Sample Program |
