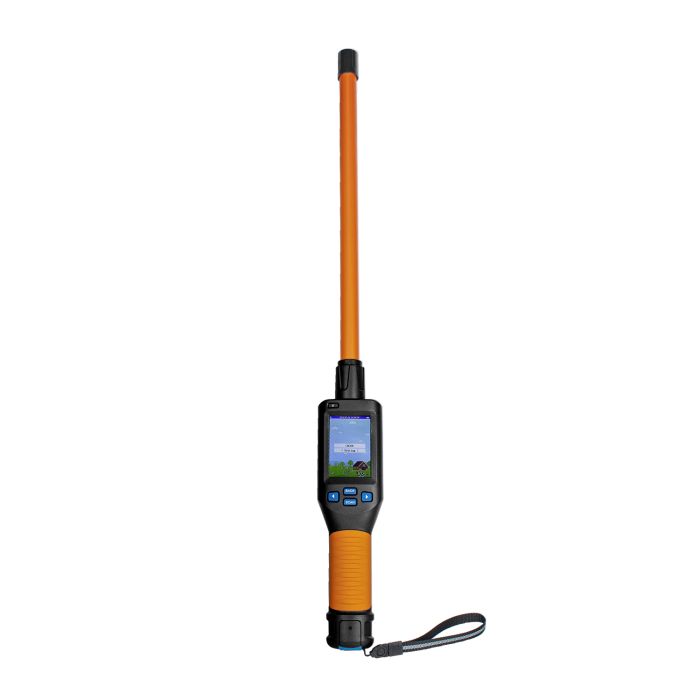

Yanzeo AR980 Long Distance Handheld Animal RFID Reader
-
Test Video: https://www.youtube.com/watch?v=6o70FYvzwCk
-
Please check the DEMO SDK: https://www.yanzeo.com/RFIDEPCSDK.rar
-
Overview
The hand set adopts wireless reading mode and supports electronic tags in FDX-B and FDX-A (ISO11784/85) formats.
The product adopts a high-brightness LCD (480x320) display screen which can be displayed clearly in indoor or outdoor glare conditions. The storage function that products owns originally can store up to 20,000 tag information. Users can read the stored information to the computer for data management via USB data cable or wireless connection.
The product has stable performance and simple operation, which is suitable for animal management, traceability management, railway inspection and other asset management fields.
Performance Parameters
Product performance parameters are shown.
Working frequency
134.2KHz
Label format
FDX-B、FDX-A (ISO11784/85)、HDX
Sensing distance
FDX-B：
2*12mm glass tube label>10cm
30mm animal ear tag >20cm
FDX-A：
2*12mm glass tube label >10cm
HDX：30mm animal ear tag >20cm
Note: (relevant to the card reader and the usage environment)
Standard
ISO11784/85
Reading time
Less than 100ms
Signal indication
480*320 high brightness LCD、buzzer
Power supply
Lithium battery
Power consumption
0.4W
Power consumption
20000 pieces of information (tag code + time)
Battery life capacity
More than 10,000 readings when it is fully charged.
Battery capacity
3000mA
Communication interface
USB2.0、Bluetooth
