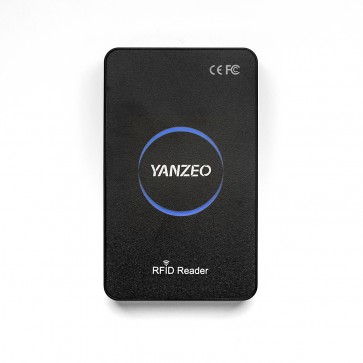

Yanzeo SR360 Desktop UHF RFID Card Reader

Yanzeo SR360 865Mhz~915Mhz Desktop UHF RFID Card Reader with Keyboard Emulation Output Access Control System POS

● Work to Windows, Android, IOS, Linux with Keyboard Emulation Output

● Write Tag Information Quickly And Read Tags Quickly

● Support RS232 Serial Port Mode (Customized Development)

● Small Size,Desktop Deployment Saves Space.

● Used in Retail, Clothing, Warehouse, Inventory.

● 3M Sticker Wall Mounting

Availability: In stock

Regular Price: $139.00

Special Price $129.00

  • We will send this product in 2 days. Read more...

    Call us now for more info about our products.

    Return purchased items and get all your money back.

    Buy this product and earn 10 special loyalty points!


    Details
    Details
    Yanzeo SR360 865Mhz~915Mhz Desktop UHF RFID Card Reader with Keyboard Emulation Output Access Control System POS

    Can not writ UHF RFID Card,Only Read.

    Yanzeo SR360 is a small desktop reader. The card issuer is plugged in and
    used without driver. It has superior anti-interference ability; ABS industrial
    grade casing; rich interface; and can be customized. Compatible with ISO
    18000-6C and ISO 18000-6B standards, its working frequency is 902MHz ~
    928MHz, small integrated reader for short-distance identification or
    background card issuer management, small size, easy to carry, suitable for
    personnel access control, pictures Document management, as well as
    background reading, writing, authorizing, formatting, etc. .

    Application areas:
    Logistics and warehousing management: item flow and warehousing
    management and flow management of mail, parcels, transport baggage, etc.;
    Intelligent parking lot management: parking lot management and charging
    automation;
    Production line management: identification of the production process fixed
    point;
    Product anti-counterfeiting detection: use the in-tag memory write protection
    function to identify the authenticity of the product;
    Other areas: in the club management, library, student status, consumption
    management, attendance management, dining management, pool
    management and other systems have been widely used.

    Product Features:
    Small and square shape, suitable for indoor desktop placement;
    USB interface, no need to drive, USB virtual keyboard cursor input.
    Fast data read rate;
    Multi-zone multi-label reading;
    Multi-protocol compatibility;
    Yanzeo SR360 Passive Portable Desktop Card Issuer

    Specification:
    Functions
    Operating Frequency
    International(920~925MHz)
    USA (902 ~ 928MHz)
    Others(Customized Tag)
    Protocol ISO18000‐6C(EPCGEN2)
    ISO18000‑6B
    Frequency Hopping
    Mode
    Fixed Frequency Band and FHSS Software Programmable
    Antenna 2dBi circular polarize antenna (Integrated)
    Output Power 0dBm~30dBm(Adjustable)
    Read/Write Range Max Read Range:0.5m, Max Write Range:0.2
    Distance depends on Reader&Antenna output Power
    Operating Mode
    Master‐Slave Mode(Online Mode)
    Time Scheduled Modes
    Trigger Mode
    Connecting Ports
    Power 12V
    Communication Port
    USB
    10/100M Ethernet,GPRS.WIFI(for Customized Model only)
    Trigger 1xTriggerLevelInput
    General Purpose 2xGPIO
    Operating Environment
    Operation -20℃~ 60℃
    Storage -45℃~ 85℃
    Physical Parameter
    Dimension 170mm×105mm×42mm
    Weight 0.3Kg
    Accessories
    Power Supply USB 12V
    Cables Power Cable
    RS232SerialCable
    Brackets Pole Mount Adapter
    Software
    Pack(Optional)
    API Software Development Kits complete with VB,C#Sample Program

    Warranty policy:
    Each of Yanzeo RFID Reader will have a 12 months warranty
     TIM20181228150032TIM20181228150137

    3480-13480-23480-33840-4
